主要特性與技術指標

Output Ratings

• Voltage: 0 to 20 V

• Current: 0 to 5 A

• Peak Current for up to 7 ms: 5 A

Programming accuracy at 25°C ±5°C (% of setting plus fixed)

• Voltage: 10 mV

• + Current: 2 mA

DC Readback Accuracy

• Voltage: 0.03% + 5 mV

• Current (+20 mA to + rated current): 0.2% + 0.5 mA

• Current (-20 mA to – rated current): 0.2% + 1.1 mA

• Current (-20 mA to + 20 mA range): 0.1% + 2.5 μA

Transient Response

• 650mV drop, <100 μs transient response time

描述

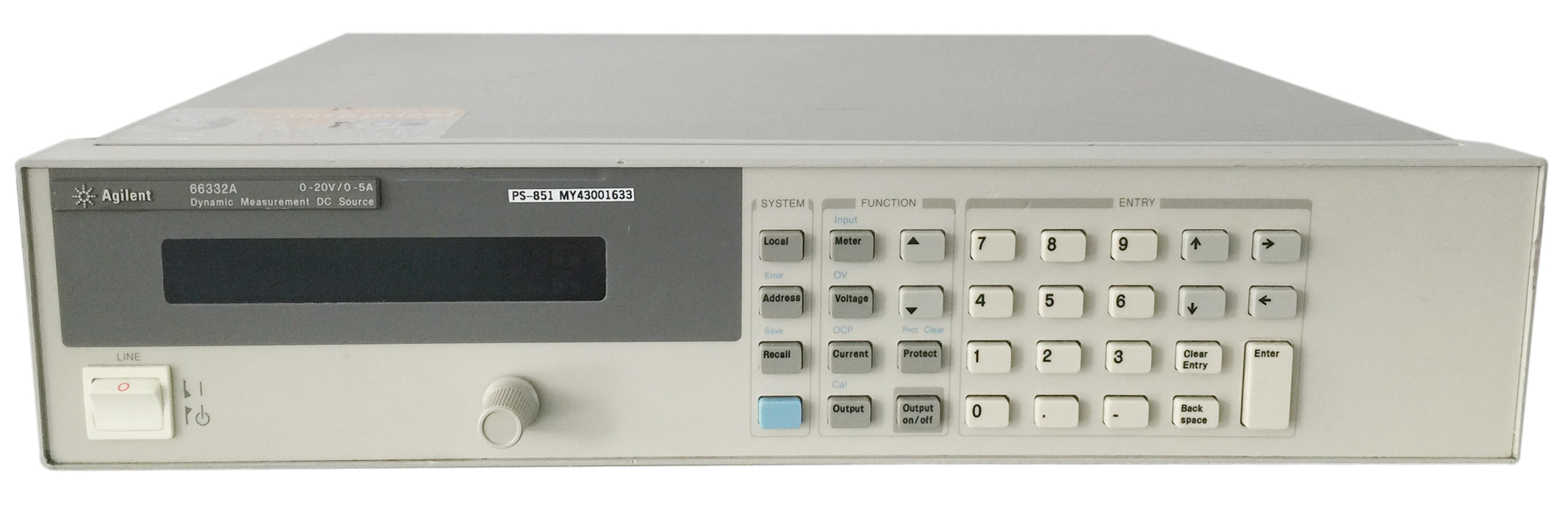

Keysight 66332A 動態測量直流電源可以動態測量和分析電壓波形電流波形。它為測試數字無線通信產品/器件提供了理想的解決方案，因為它不僅提供了測試電源，而且可以進行檢定這些產品的脈沖電流所需的峰值電流測量。
